KVN® HOME
Rendering of Valley Home at dusk, seen from the fire terrace
RENDER
SCROLL TO EXPLORE ↓

VALLEY HOME

A house shaped
by the horizon.

JOIN THE RELEASE LIST ↘
THE FIRST OFFERING

A familiar form,
quietly reconsidered.

Valley Home is a compact two-bedroom house designed around landscape, light, and the rituals of everyday living.

A simple gabled volume holds an open living room, generous loft, and a full-height south window wall—creating a house that feels far larger than its footprint.

KVN HOME is the architectural-plan collection of KVN Studio.

CHOOSE YOUR VERSION
{{ cfgArea }}
square feet
{{ cfgBeds }}
bedrooms
{{ cfgBaths }}
bathrooms
{{ cfgSleeps }}
sleeps
48′ × 28′
footprint
{{ cfgNote }}
Rendering of Valley Home from the terrace, late morning
RENDER
The pergola runs off the kitchen. Two of the three outdoor rooms are on this side.
Valley Home from the approach
RENDER
From the approach. Blank gable to the road, entry on the sheltered side.
Valley Home from the south west, mountains behind
RENDER
South west corner. The glazed gable reads as one opening from distance.
South gable end and entry
RENDER
South gable — entry under a solid timber head, loft window above.
North elevation
RENDER
North elevation — bedroom windows, secondary door, pergola beyond.
Rendering of an overhead view of the house and its fenced ground
RENDER

Architecture that
belongs to its place.

The house is deliberately quiet from the approach and completely open toward the landscape. Every opening is placed for view, light, or privacy.

INSIDE

One room, one
volume, one view.

Kitchen, dining and living share the full height of the gable. The bedrooms sit off a compact hall at the other end, where the ceiling drops and the rooms go quiet.

Rendering of the living and dining room, wood stove on the inner wall and the loft rail above
RENDER
Living and dining, one room under the gable. Wood stove on the inner wall, loft rail above, deck through the glass.
Rendering of the full-height south window wall seen from the dining table
RENDER
The south window wall carries the full height of the gable end.
Rendering of a bedroom off the hall, desk at the window and closet set into the wall
RENDER
A bedroom off the hall, desk at the window, closet set into the wall depth.
Rendering of the kitchen, island with stool seating, open to the loft above
RENDER
The kitchen runs along one wall, island seating six, open to the loft above.
FLOOR PLANS

{{ cfgPlanHeading }}

Plans shown for {{ cfgName }}.

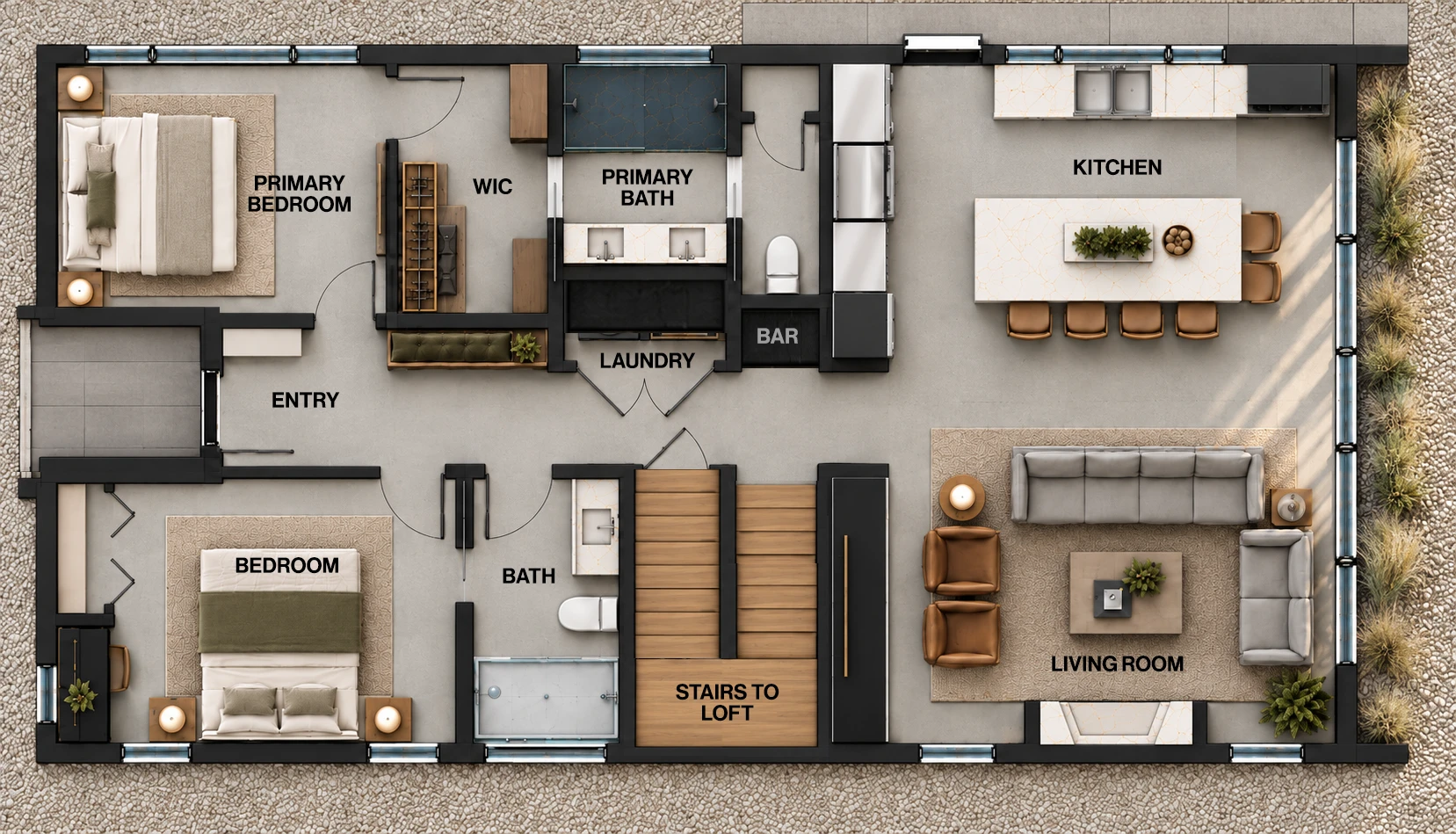

Main floor plan — porch, entry, bedrooms, kitchen and living
{{ mainPlanCaption }}

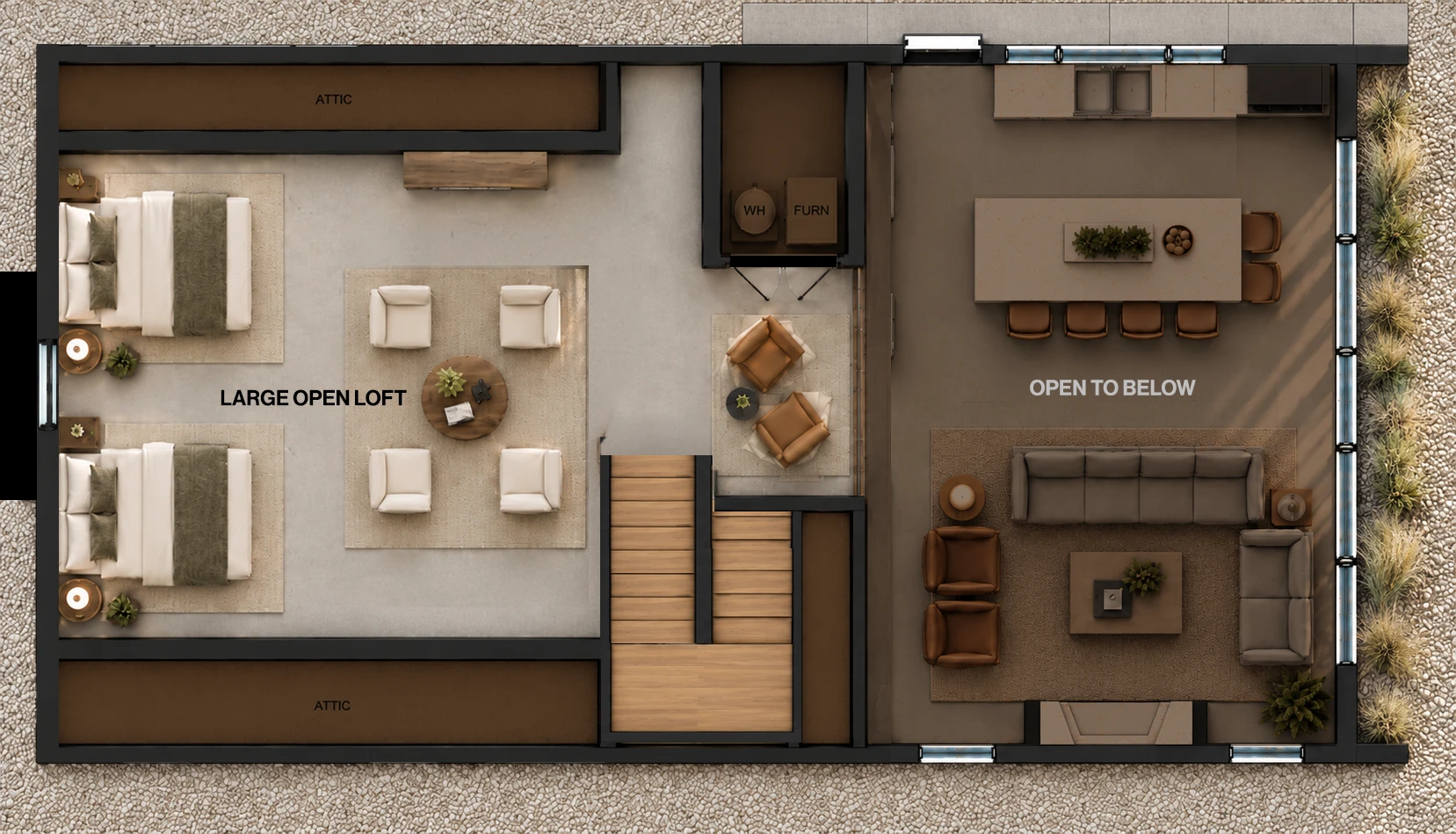

Loft plan — loft, mechanical, stair and the volume open to below
{{ loftPlanCaption }}
Drawings above are the loft version. The sheets for this configuration are drawn and go up before October 1.
THE HOUSE IN DETAIL

What you are actually buying a plan for.

Numbers a builder, a lender or a planning office will ask for. Where a figure depends on your own site or county, it is marked rather than guessed.

Version{{ cfgName }}
Total floor area{{ cfgTotalArea }} sq ft
Main floor1,344 sq ft
{{ cfgUpperLabel }}{{ cfgUpperArea }} sq ft
Bedrooms / bathrooms{{ cfgBedBath }}
Sleeps{{ cfgSleeps }}{{ cfgSleepNote }}
Overall footprint48′ × 28′
Stories{{ cfgStories }}
Ceiling heights9′ main floor
RoofGable, pitch modifiable
FoundationInsulated slab-on-grade, perimeter stem wall
Climate the set assumesAny climate, with local adaptation
Local professionals neededStructural engineer, surveyor, energy consultant
WHAT YOU GET

Two stages.
Nothing bought twice.

Start with the planning set to learn the house against your own site. Step up to the building set when you know it is going ahead, and the planning fee comes off the price in full.

PRICED FOR
START HERE

Planning set

Learn the house at your own pace

{{ cfgPlanning }}
WHAT IT DOES FOR YOU
  • ✓Simplified plans, elevations and a section — enough to price it
  • ✓Take it to a builder and get a real number back
  • ✓Construction budgeting worksheet
  • ✓Brands and products buying guide
  • ✓Instant download. No call, no consultation, no queue
  • ✓Your $1,500 comes off the building set in full

A preliminary feasibility set. Not licensed for construction.

WHEN YOU ARE READY

Move up to the building set for the full construction documents. What you paid here comes off the price. Nothing is bought twice.

FOR BUILDING

Building set

The full set, for local adaptation and permit

{{ cfgBuilding }}
WHAT IT DOES FOR YOU
  • ✓Full construction documents
  • ✓CAD files for your engineer
  • ✓Licence to build
  • ✓Materials quantities worksheet
  • ✓Brands and products buying guide
  • ✓Build Advisor support
  • ✓Customizations available
SEE EVERY SHEET IN THE SET →
WHAT THE SET DOES NOT DO

The set is a complete architectural design, not a permit. Every build needs local adaptation to your site and code, structural engineering, energy compliance and permit review by your jurisdiction. The set is not stamped.

WHAT YOU STILL HAVE TO ARRANGE
Structural engineering and any stamp your county requires
Mechanical design — equipment sizing, duct and refrigerant layout
Plumbing riser and waste diagrams
Energy code compliance filing for your climate zone
Site-specific work: survey, soils report, septic, well, grading
Permit application, plan review and any revisions review demands
Construction cost estimating and builder contracts

How the credit works. Start with the planning set to learn the house — no call required. When you are ready, the upgrade balance is the difference, nothing more.

$1,500 planning set+$2,000 upgrade balance=$3,500 total — the same as buying the building set outright.
Join the release list →
Plans available October 1, 2026. No payment is taken today.
REVIEWS ON TRUSTPILOT →
Reviews are collected after delivery, so there are none yet.
THE PLAN

Designed to live simply.
Resolved to build beautifully.

Nineteen sheets, drawn at quarter-inch scale on D-size paper. The full index and a watermarked sample sheet are published so you can hand them to a builder before you buy.

See the drawing set →
FROM HERE TO A BUILT HOUSE

Eight steps, in order.

01

Review your site

Setbacks, access, orientation, utilities and what your county allows. This decides whether the house fits before you spend anything.

02

Buy the planning set

$1,500. Test the house against your site, your budget and your builder without committing to the full set.

03

Talk to your jurisdiction

Ask what a permit submission needs where you build, and who has to stamp it.

04

Upgrade to the building set

$2,000 balance. The full architectural set, at the point you know the house is going ahead.

05

Engage local professionals

Structural engineer, surveyor, soils and energy as your county requires.

06

Adapt the set

Site-specific foundation, climate detailing, code edition, and any changes you want to the house.

07

Permit

Submit the adapted set, answer plan-review comments, receive the permit.

08

Build

Bid the set, select a builder, break ground. We answer drawing questions the whole way.

CONSTRUCTION SPECIFICATIONS

Drawn for efficient construction.

Ordinary assemblies, held to a high energy standard. Nothing in the set asks a builder to work in an unfamiliar way.

Insulated slab-on-grade with perimeter stem wall and continuous footing
2×6 wood-frame exterior walls
Enhanced insulation options
Site-framed gable roof, modifiable pitch
Standing-seam metal roofing
Weathered timber cladding, blackened steel trim
Electric water heater
Air-source heat pump
HRV/ERV ventilation
WHO DREW IT, WHO ANSWERS

Designed by

KVN Studio.

Drawings prepared by

KVN Studio. The set is not stamped; the stamp comes from a professional licensed where you build.

Support answered by

Builder and engineer questions are answered directly by the people who drew the set, in writing, at hello@kvnhome.com.

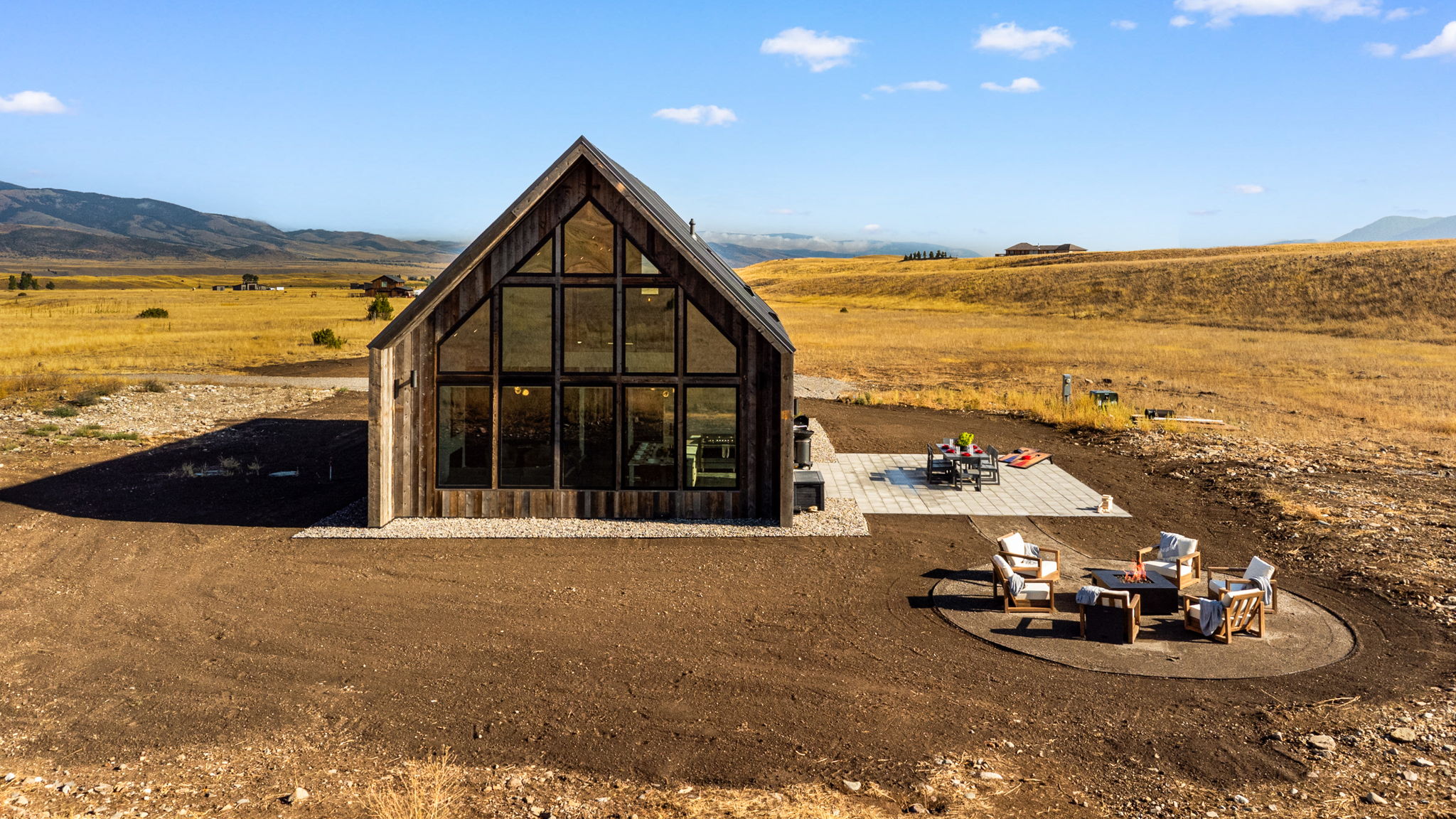

Built example. Every image of Valley Home on this page is a rendering. The house has not been built from this set. A related KVN Studio project in Pray, Montana is documented separately.

BUILT EXAMPLE, PRAY MT →
JOIN THE RELEASE LIST

Plans available October 1, 2026.

Tell us where to write and we will let you know the day the plans go live. No payment, no place in a queue, no obligation to buy.

Plans availableOctober 1, 2026
PaymentNone until you buy
One more step.
Signed up{{ confirmName }}
Confirmation sent to{{ confirmEmail }}

Open the email we just sent and click the link in it. Until you do, we have no way to write to you. If it has not arrived in a few minutes, check your spam folder.

After that, we write on October 1 when the plans go live, with the final sheet index and prices. Nothing is owed until you buy.
{{ formError }}
One email to confirm, then one on October 1. Nothing else. Your details are used for this sign-up only — see privacy.
